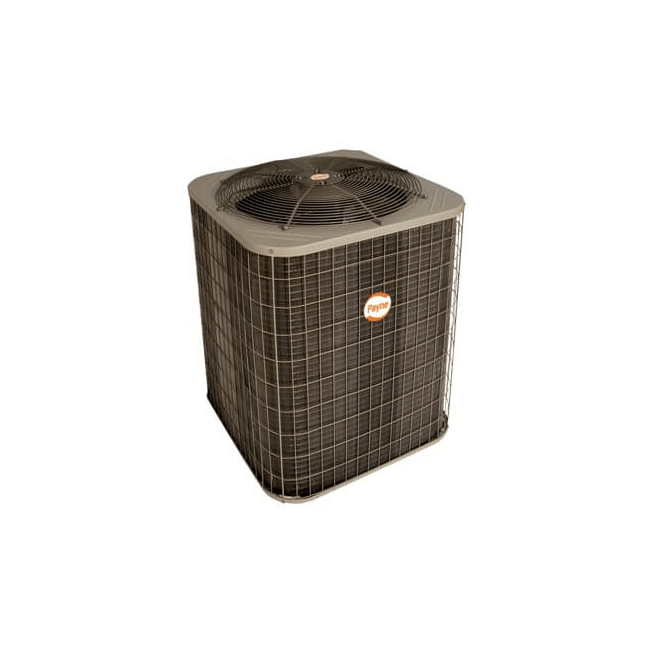

PA8TAN5 R454B 2 Stage Air Conditioner
This unit has been designed utilizing non-ozone depleting and low global warming potential R-454B refrigerant. Air Conditioners with R-454B refrigerant provide a collection of features unmatched by any other family of equipment.
NOTE: Ratings are subject to change at any time. Always refer to the AHRI directory (www.ahridirectory.org) for the most up-to-date ratings information.
Industry leading Features / Benefits
Efficiency
Up to 18.5 SEER2 / Up to 14.5 EER2
Indoor air quality accessories available
Sound
Sound level as low as 68 dBA
Comfort
System supports Thermidistat or standard 2-stage thermostat controls
Reliability
Non-ozone depleting and low global warming potential R-454B refrigerant
Front-seating service valves
2-stage scroll compressor
Internal pressure relief valve
Internal thermal overload
Filter drier
Balanced refrigeration system for maximum reliability
Durability
Protection Package: Solid, Durable sheet metal construction
Pre-painted cabinet finish over galvanized steel
Applications
Long-line - up to 250 feet (76.2 m) total equivalent length, up to 200 feet (60.96 m) condenser above evaporator, or up to 80 ft. (24.38 m) evaporator above condenser (See Long Line Guideline for more information.)
Low ambient cooling (down to 0°F / -17.8°C) with approved low ambient accessory kits.
Limited Warranty
5-year parts limited warranty (including compressor and coil)
– 10-year parts limited warranty (including compressor and coil) with timely registration*.
Equipment must be registered within 90 days of original installation, except in jurisdictions where warranty benefits cannot be conditioned on registration.
* Applies to original purchaser/homeowner and not available to subsequent owners except in jurisdictions where applicable laws dictate otherwise.
See warranty certificate for complete details and restrictions.
Prop 65
Warning: this product contains a chemical known to the State of California to cause cancer. P65Warnings.ca.gov
UPC | 1 |
---|---|
Brand/ Manufacturer | Payne |
Model # | PA8TAN536 |
Product Series | PA8SA 18 2Stg AC R454B |
BTU | 36,000 Cooling at 95F |
Pad Size | 36x36x3 |
Dimensions (LxWxH) | 35 x35 x 32 |
Tons | 3 |
Nominal SEER | 18 SEER |
Refrigerant | R-454B |
Voltage | 208/230-1PH |
Compressor Type | Scroll |
Suction Line Size | 7/8" |
Liquid Line Size | 3/8" |
